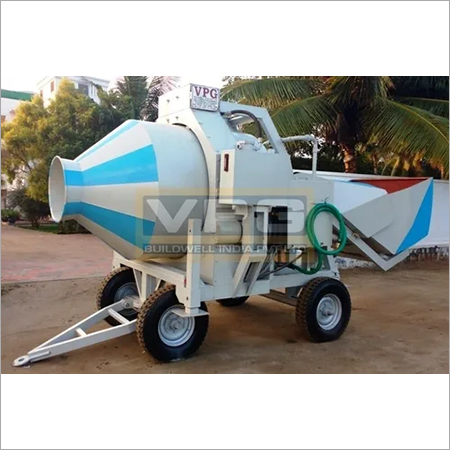

Commercial Reversible Concrete Mixer Machine

Name: Commercial Reversible Concrete Mixer Machine
Brand: VPG BUILDWELL INDIA PVT. LTD.
Price: 750000.0 INR
Availability: InStock

Price 750000.0 INR/ Cubic Meter

Get a Price/Quote

MOQ : 1 Cubic Meter

Commercial Reversible Concrete Mixer Machine Specification

Lifting Speed
20-25 m/min (approx.) mm/m

Surface
Powder coated paint finish

Motor Power
10 HP Electric Motor Horsepower (HP)

Lifting Height
Up to 30 meters Meter (m)

Product Type
Reversible Concrete Mixer Machine

General Use
Construction site concrete mixing

Material
Mild Steel

Capacity
10/7 Cft, 500 liters/batch Ltr

Weight (kg)
1200-1500 kg (approx.) Kilograms (kg)

Computerized
No

Cooling System
Air Cooled

Method
Reversible Drum Mixing

Voltage
415 V, 3 Phase, 50 Hz Volt (v)

Dimension (L*W*H)
2800 mm x 1600 mm x 2600 mm Millimeter (mm)

Feature
Convenient loading, robust chassis, easy maintenance

Color
Yellow/Blue (customizable)

Power Source
Electric or Diesel Engine

Drum Speed
18-22 RPM

Hopper Type
Hydraulic hopper

Transportability
Fitted with pneumatic tyres for easy mobility

Mixing Time per Batch
2-4 minutes

Discharge Mechanism
Manual/Automatic lever operated

Noise Level
≤ 80 dB

Water Tank Capacity
150 Liters

Output per Hour
8-12 Cubic Meter

Commercial Reversible Concrete Mixer Machine Trade Information

Minimum Order Quantity
1 Cubic Meter

Main Domestic Market
Pondicherry, South India, Tamil Nadu, Telangana, Andhra Pradesh, Karnataka, Kerala

About Commercial Reversible Concrete Mixer Machine

We mainly deals in Andhra Pradesh, Karnataka, Kerala, Puducherry, Tamil Nadu, Telangana only.

Reversible Concrete Mixer Machine

Type	Unit	RM1050 3 bag
Output	Cum/	8-13
Output	hr	8-13
Output per mix	Cum/	0.4
Output per mix	mix	0.4
Batch capacity	Ltrs.	900/600
Hopper capacity	Kgs.	1050
Bag capacity		3
Drum centre length	mm	1520
Drum total length	mm	2520
Drum diameter	mm	1300
Electric motor	Hp	10
Rotary speed of mixing drum	RPM	16/20
Loading Hopper		hydraulically
Weighing (optional) Electronic load cells Single bin = 1Nos.		Digital electronic
Two bin = 2Nos.
Three bin = 3Nos.
Drive		Gear box
Electronic water meter		Digital electronic
Water pump	Hp	1.5
Weight	Kgs.	3000

Efficient Mixing for Demanding Construction Projects

This reversible concrete mixer boasts a drum speed of 18-22 RPM, providing thorough mixing within 2-4 minutes per batch. The machines reversible drum coupled with a manual or automatic lever discharge guarantees uniform mixing results, even with large batch volumes, enabling seamless site workflows for construction professionals.

Built for Rugged Performance and Mobility

Manufactured with heavy-duty steel channels and angle frames, this mixer is designed to withstand rough site conditions. Its pneumatic tyres ensure effortless transport across various terrains, while a lifting speed of 20-25 meters per minute and lifting height up to 30 meters provide operational versatility for multi-story projects.

User-Friendly Operation with Enhanced Safety

Equipped with a panel-operated control system, this mixer integrates a hydraulic hopper and air-cooled motor for dependable, safe, and simple operation. The powder-coated finish extends the mixers lifespan, and noise levels remain at or below 80 dB, contributing to a safer, more comfortable workplace.

FAQs of Reversible Concrete Mixer Machine:

Q: How does the reversible drum mixing process improve concrete quality?

A: The reversible drum system alternates the drums rotation direction, ensuring that concrete ingredients are mixed efficiently and uniformly. This thorough mixing results in higher-quality concrete, reducing segregation and improving strength, especially when handling large batch sizes.

Q: What makes this mixer suitable for transport and different site locations?

A: The mixer is equipped with pneumatic tyres and a sturdy steel chassis, allowing it to be easily moved across uneven or rugged construction sites. Its compact dimensions and robust frame make repositioning and transportation straightforward, saving time and effort.

Q: When should I choose the electric motor versus the diesel engine option?

A: Opt for the electric motor when reliable 3-phase, 415 V power supply is available at your site, benefiting from efficient and quieter operation. The diesel engine variant is ideal for remote areas lacking stable electricity or where mobility and independence from power infrastructure are required.

Q: Where is this concrete mixer typically used?

A: This concrete mixer is primarily used at construction sites for preparing concrete for building foundations, structures, roads, and other civil works. Its rugged design and high output make it well-suited for both small and large-scale construction projects.

Q: What is the process for batch mixing, and how long does one cycle take?

A: Operators load ingredients into the hydraulic hopper, which lifts them into the drum. The mixer blends the batch in 2-4 minutes, with the discharge managed by a manual or automatic lever. Each cycle is quick and efficient, enabling high hourly output.

Q: How does routine maintenance benefit this machines longevity?

A: Regular maintenance ensures sustained performance by reducing wear, preventing breakdowns, and extending the machines service life. The mixers accessible design and powder-coated finish make routine checks and cleaning simple, minimizing downtime and repair costs.

Q: What advantages does the semi-automatic control system offer?

A: The semi-automatic, panel-operated system streamlines operation and helps maintain consistent mixing quality. This user-friendly setup reduces the likelihood of operator error and enables straightforward adjustments to suit different mixing requirements.
